Model: DW-HDSPOTMOD16

Category: More Video Surveillance

Brand: Digital Watchdog

Dealer pricing

Digital Watchdog's DW® Spot™ monitoring module lets you directly view up to sixteen (16) HD cameras at a time without connecting to them through a PC or server. The DW-HDSPOTMOD16 is easy to use, automatically searching the network and identifying an unlimited number of ONVIF conformant IP cameras, Universal HD over Coax® VMAX® A1™ DVRs (via RTSP) or VMAX® IP Plus™ NVRs for local monitoring. The DW Spot™ monitoring module is ideal for providing public views in retail and office environments, as well as providing camera views for security personnel. The DW Spot™ can be configured remotely via a web browser and is backed by Digital Watchdog's unbeatable 5 year warranty.

Main Features
  • Automatic network search and device registration
  • Identifies an unlimited number of ONVIF conformant IP cameras, Universal HD over Coax® VMAX® A1 DVRs (via RTSP) or VMAX® IP Plus™ NVRs
  • Live monitoring of up to 16 cameras view and 16-camera sequencing
  • Up to 480fps display
  • Drag and drop camera selection from DVRs and NVRs
  • Remote configuration via the Internet
  • Supports up to 5 Megapixel (2592x1944) resolution cameras, max. 80 Mbps throughput

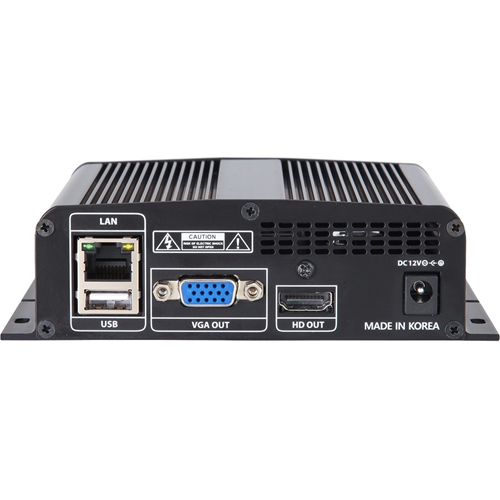

  • HD and VGA video outputs
  • USB mouse included
  • Velcro for easy mounting to the back of a monitor

Brand Name Digital Watchdog
Connectivity Technology Wired
Depth 4.8"
Diameter 5.5"
Environmentally Friendly Yes
Ethernet Yes
Frame Rate 480 Frames Per Second
Height 1.3", 4.8"
Limited Warranty 5 Year
Model DW-HDSPOTMOD16
Maximum Frame Rate 480 fps
Number of PoE+ (RJ-45) Ports 16
Number of VGA Out 1
Packaged Quantity 1
Product Line Spot
Product Type Video Surveillance Station
Remote Management Yes
System Components Monitoring Module
Total Number of Channels 16
USB Yes
Vendor Name Digital Watchdog
Video Formats H.264
Width 5.5", 1.3"
