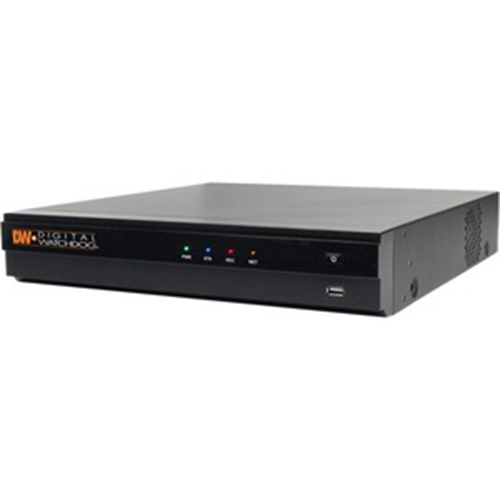

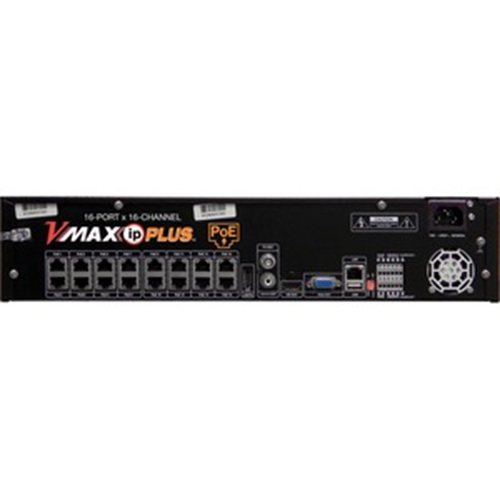

Digital Watchdog VMAX IP Plus 16-Channel PoE NVR
Digital Watchdog VMAX IP Plus 16-Channel PoE NVR

Digital Watchdog VMAX IP Plus 16-Channel PoE NVR

Model: DW-VP162T16P

Category: Recording Devices, NVRs

Brand: Digital Watchdog

Dealer pricing

The VMAX® IP Plus™ is an easy to use PoE NVR that allows you to go from power up to monitoring in less than three minutes! The NVR offers unique features such as CCIP™ camera encryption and internal systems diagnostics, keeping your system healthy, secure and up to date.

Combine with the DW Witness™ app to turn the camera on a smartphone or tablet into a surveillance camera that can be viewed and recorded on the NVR. Combine your VMAX IP Plus with DW Spot™ Monitoring Modules for public view monitors. Each NVR can support up to 16 remote connections and share a maximum of 64 channels simultaneously.

Main Features

  • 2TB storage size
  • Record and manage single-sensor IP cameras up to 4K (3840×2160), with 160Mbps maximum throughput
  • Local power for up to 16 IP cameras via resident PoE switch
  • PathFinder™ Peer-to-Peer (P2P) remote connection
  • HTTPS encryption supported
  • Automatic device discovery
  • Control any ONVIF camera’s set up and features remotely
  • Snapshot Notify™: camera notifications sent to an email or CMS
  • C3™ CMS and event server software up to 144 Channels
  • Event notifications via email, text and C3™ CMS and push notifications to mobile devices
  • Mobile application for iPhone, iPad, iPod, Android smartphones and tablets and Apple TV
  • Dual-stream recording
  • Easy drag and drop camera management
  • Instant backup during playback
  • Full HD output for local live and playback display, up to 4K (3840×2160)
  • Complete system analysis with real-time system, network and PoE status monitoring
  • True HD and VGA simultaneous output support
  • 4 sensor input, 1 alarm relay output (3rd generation HW)
  • 16 sensor input, 4 alarm relay output (2nd generation HW)
  • Transaction verification via TCP and USB-serial
  • Email event notifications with video clip
  • Simple and free DDNS support for remote management
  • Easy web-based client with multi-user access
  • Advanced H.264 Linux embedded NVR
  • Simultaneous live, playback, recording, back-up and network
  • NVR health check with email notification
  • NVR calculation and auto-recording configuration
  • Help menu on major functions
  • Auto or manual firmware upgrade available
  • Automatic private IP addressing
  • NTP (network time protocol)
  • Screen saver to protect monitor screen
  • Import/export configuration between multiple NVRs
  • USB mouse and GUI control
  • 5 year limited warranty
Main Features
  • Allows you to control multiple linked IP cameras remotely or centrally that exist at different locations
  • Manage remotely from your computer, tablet, smartphone or any other mobile device
  • Up to 16 number of channels to address small-to-mid range requirements
  • USB port for easy sync/connectivity

Brand Name Digital Watchdog
Category Type NVRs
Composite Video Out Yes
Connectivity Technology Wired
Depth 15.8", 3.5"
Environmental Certification RoHS, RoHS, WEEE, WEEE
Environmentally Friendly Yes
Ethernet Yes
Frame Rate 480 Frames Per Second
Hard Drive 2 TB
Hard Drive Capacity 2 TB
HD Recording Yes
HDMI Yes
Height 3.5"
Limited Warranty 5 Year
Model DW-VP162T16P
Maximum Frame Rate 480 fps
Maximum Resolution 1920 x 1080
Maximum Video Resolution 1920 x 1080
Number of PoE+ (RJ-45) Ports 16
Number of VGA Out 1
Packaged Quantity 1
Product Line VMAX IP Plus
Product Type Video Surveillance Station
Remote Management Yes
System Components Network Video Recorder
Total Number of Audio Out Ports 1
Total Number of Channels 16
USB Yes
Vendor Name Digital Watchdog
Width 15.8", 16.5"
