Model: CNFE1005SAC2-M
Category: Media Converters
Brand: Comnet

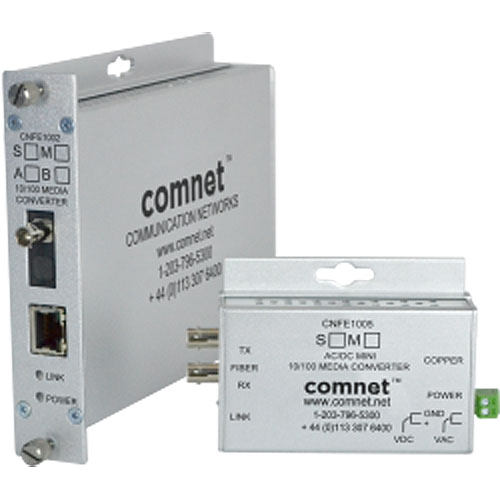

Dealer pricingThe ComNet Ethernet media converters are designed to transmit and receive 10/100 Mbps data over multimode or single mode optical fiber. The electrical interface will Auto-Negotiate to a 10 Mbps, or 100 Mbps Ethernet rate without any adjustments. The optical interface operates at a 100 Mbps Ethernet rate. These media converters are environmentally hardened to operate in extreme temperatures. LED indicators are provided for rapidly ascertaining equipment operating status. Packaged in the exclusive ComNet ComFit housing, the standard size units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.
| Brand Name | ComNet |
| Depth | 3.3", 1.1" |
| Digital Audio | No |
| Digital Audio/Video | No |
| DVI | No |
| Environmental Certification | RoHS, RoHS, WEEE, WEEE |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Mode | Single-mode |
| Form Factor | Rack-mountable, Rail-mountable, Wall Mountable, Rack-mountable, Wall Mountable, Rail-mountable |
| Height | 1.1" |
| Input Voltage | 9 V DC |
| Limited Warranty | Lifetime |
| Management Port | No |
| Manufacturer | ACRE |
| Model | CNFE1005SAC2-M |
| Maximum Distance Supported | 12.43 Mile |
| Media Type Supported | Optical Fiber, Twisted Pair, Twisted Pair, Optical Fiber |
| Network (RJ-45) | Yes |
| Network Technology | 10/100Base-TX, 100Base-FX, 10/100Base-TX, 100Base-FX |
| Number of +12V Rails | 2 |
| Number of Network (RJ-45) Ports | 1 |
| Number of ST Ports | 1 |
| Packaged Quantity | 1 |
| Parallel Port | No |
| Product Series | CNFE100 |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 2 |
| USB | No |
| Vendor Name | Comnet |
| Width | 2.5", 3.3" |
