ComNet Proprietary Power Supply
ComNet Proprietary Power Supply

ComNet Proprietary Power Supply

Model: PS-AMR1-12

Category: Power, Batteries & Power Supplies

Brand: Comnet

Dealer pricing

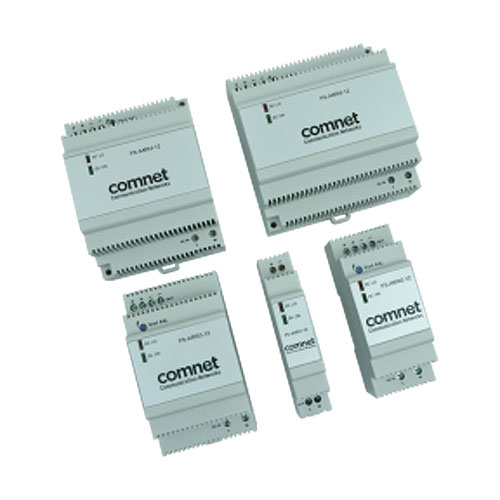

The ComNet PS-AMR Series offer a complete range of high quality, low noise switching mode power supplies of various output sizes ideally suited to the entire ComNet industrial product range that require either 12 or 24VDC power input. These rugged units are DIN rail mountable, providing an ideal mounting configuration to a mating ComNet industrial switch or any product using our range of DIN rail mounting adapters. The wide ambient operating temperature range permits installation in most out of plant and unconditioned environments, such as those found in intelligent transportation systems or factory automation/industrial control applications. Unconditional line and load protection is provided.

Features for PS-AMR Series

  • Adjustable output voltage range support
  • Universal AC input: 90 to 264 VAC, 47-63Hz
  • Designed for standard 7.5 or 15 mm DIN rail mount installations
  • High operating efficiency; up to 89%
  • Small package for limited space installations
  • Wide operating temperature range

Brand Name ComNet
Depth 0.7", 2.2"
Efficiency 78%
Form Factor DIN Rail
Height 3.6", 0.7"
Input Voltage 120 V AC, 230 V AC, 120 V AC, 230 V AC
Limited Warranty 3 Year
Manufacturer ACRE
Model PS-AMR1-12
Output Power 10 W
Output Voltage 12 V DC @ 830 mA
Power Consumption 10 W
Product Series PS-AMR
Product Type Proprietary Power Supply
Vendor Name Comnet
Weight (Approximate) 2.24 oz
Width 3.6"
