Camden CM-30EE Push Button
Camden CM-30EE Push Button

Camden CM-30EE Push Button

Model: CM-30EE

Category: Locking Devices, Exit Devices & Push Buttons

Brand: Camden Door Controls Us

Dealer pricing

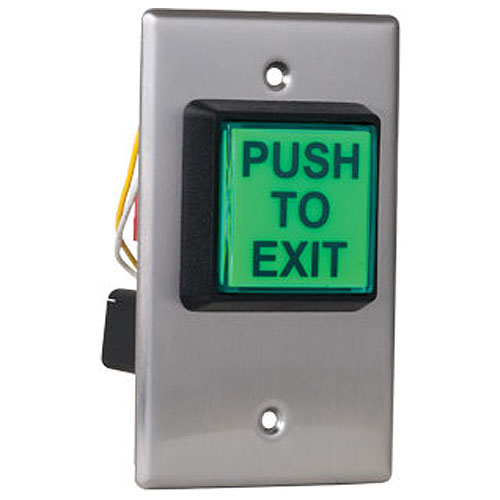

CM-30EE LED illuminated exit switches are high visibility, economical 'request to exit' (REX) controls. Buttons are backlit in green with black PUSH TO EXIT text. They are supplied with a single gang industrial grade stainless steel faceplate and tamperproof screws.

CM-30EE is supplied with an integrated 30 second fixed timer.Pushing the button cuts power to the magnetic lock and activates the timer. In-wall mounting box included.

Main Features

  • Large 2" square illuminated button mounted on stainless steel faceplate
  • Heavy duty stainless steel faceplate
  • 30 second fixed timer
  • In-wall back box included
  • 12/24V with LED bulb
  • Tamper proof screws and driver included
  • Double break design for additional security
  • 3 year warranty with '2 for 1' replacement
  • Voltage: 12/24 VDC
  • Contact Type: SPDT Form 'C'
  • Contact Rating: 10 A @ 30 VDC
  • Switch Type: Momentary
  • Dimensions: 4-1/2" x 2-3/4" x 2-1/2” (114.3mm x 69.85mm x 63.5mm)
  • Std. Finish: US/C 32D
  • Mounting: Single gang in-wall box included

Brand Name Camden
Button Size 2"
Category Type Exit Devices & Push Buttons
Color Green
Depth 2.8", 2.5"
Features Tamper Resistant, Heavy Duty, Tamper Resistant, Heavy Duty
Gang Type Single Gang
Height 4.5"
Input Voltage 24 V DC
Limited Warranty 3 Year
Manufacturer Camden Door Controls
Model CM-30EE
Material Stainless Steel
Print/Message Push To Exit
Product Type Push Button
Vendor Name Camden Door Controls Us
Width 2.8", 2.5", 2"
