ByteBrothers Power Panel POE1000IL Network Testing Device
ByteBrothers Power Panel POE1000IL Network Testing Device

ByteBrothers Power Panel POE1000IL Network Testing Device

Model: POE1000IL

Category: Test Equipment, Network Test Equipment

Brand: Byte Brothers

Dealer pricing

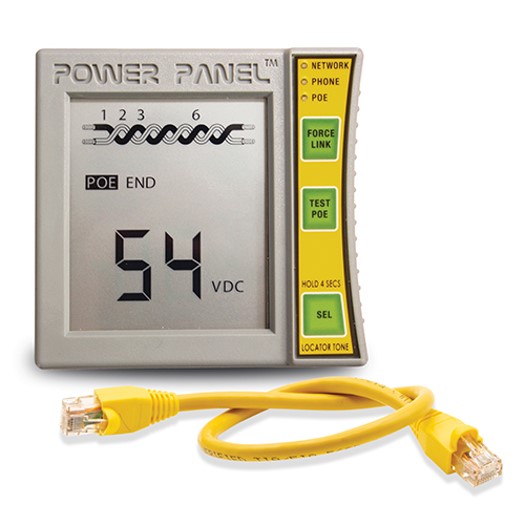

Understanding what data and power is on a CAT5/5 cable is becoming increasingly important as cables are becoming crowded with a wide variety of data devices and power sources. The Power Panel CAT5/6 DVM is the right tool because once connected, it goes to work scanning each pin on a connector and displaying both the activity and pair location. Whether it be network devices, phones, or Power Over Ethernet, all is displayed. If you are a VOIP phone and IP camera installer, you willo find the Power Panel particularly useful because you will know there is power and a data pair available for your equipment.
Main Features
  • Scans all pins
  • Displays PoE power: volts, watts*, cable pair location, and end/midspan*
  • Advertised data speed (10,100,100MB/s), duplex
  • Works on telephones (digital, analog)
  • VOIP phone and IP camera load stimulator
  • Link pulse transmit button

ADI Part Number BY-POE1000IL
Brand Name ByteBrothers
Category Type Network Test Equipment
Environmentally Friendly Yes
Limited Warranty 1 Year
Manufacturer Byte Brothers, Inc
Model POE1000IL
Network (RJ-45) Yes
Number of +12V Rails 2
Number of Network (RJ-45) Ports 2
Product Type Network Testing Device
Vendor Name Byte Brothers
