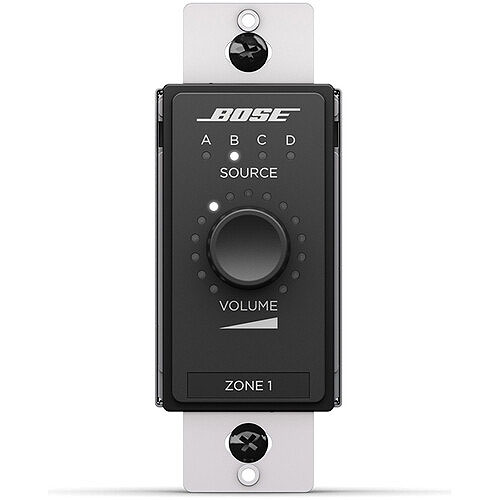

CONTROLCENTER CC-3D DIG ZONE CTRLR BLK

Model: 808930-0110

Category: Commercial Control, Accessories

Brand: Bose Professional

Dealer pricing

Bose Professional ControlCenter digital zone controllers provide volume and source selection for Bose CSP, ESP, and EX sound processors. Powered using PoE, up to16 units for CSP and 32 units for CSN can be used simultaneously on an Ethernet-based network. Three models are available in either black or white, feature volume/source LED indicators, and fit 1-gang electrical boxes in North America, Europe, and Japan.

Main Features

  • Three main models: the CC-1D for simple volume control, the CC-2D for volume plus A/B source selection, and the CC-3D for volume plus A/B/C/D source selection
  • User-friendly interface features a single rotary encoder for volume (knob turn), source selection (knob push) and mute (knob8 push and hold) with an illuminated volume and source LED indication
  • Attractive, understated styling with two color options and regional variants to blend in seamlessly with most spaces
  • Networkable and PoE-powered: Ethernet-based and uses PoE for power; no special cabling or external power supplies required
  • Programmable: Installers can set discrete volume ranges and source options in software; up to16 units for CSP and 32 units for CSNcan be used simultaneously in expansive projects with Bose CSP and ESP-based systems.
  • Custom Labels: Each zone controller includes a sheet of pre-printed labels, with two blanks for custom labeling
  • Regional variants: Each main model comes in three regional sub-models to support different sized electrical boxes. North American and Japanese models are designed for use with Decora®-style wall plate covers (not included). The 86×86 mm European model is supplied as a finished wall plate
  • Compatible with Bose CSP, ESP, and EX sound processors, and Bose PowerMatch networked amplifiers

ADI Part Number 1B-808930011
Brand Name Bose Professional
Category Type Corporate & Telework, Education, House of Worship, Retail & Hospitality, Accessories
Model 808930-0110
Vendor Name Bose Professional
