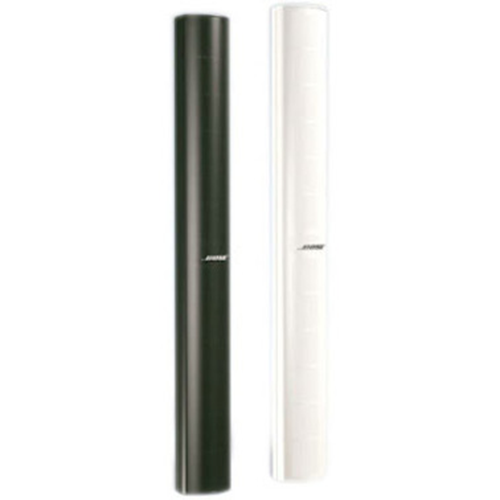

Bose Panaray MA12 Speaker - 300 W RMS - White
Bose Panaray MA12 Speaker - 300 W RMS - White

Bose Panaray MA12 Speaker - 300 W RMS - White

Model: 40188

Category: On-Wall Speakers

Brand: Bose Professional

Dealer pricing

Wide 145 degreehorizontal coverage. Designed to provide outstanding vocal intelligibility in acoustically demanding spaces. Slim column enclosure blends with almost any décor.

Main Features

  • Twelve 2.25 in.(64 mm) drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control.
  • Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves "throw" distance and reduces unwanted floor/ceiling reflections.
  • 145° horizontal x 20° nominal coverage for a single module. Vertical coverage varies with number of modules stacked in line array configuration.
  • Mid/high configuration allows bass management and design flexibility. Use with Bose MB4, MB12, or MB24 modular bass loudspeakers for full-range reinforcement.
  • Optional brackets allow easy installation of single-, double- or triple-stack line array modules.

Application/Usage Indoor, Auditorium, Restaurant, Bar, House of Worship, Transportation, Gymnasium, Recreation, Shopping, Multipurpose, Auditorium, Bar, Gymnasium, House of Worship, Indoor, Multipurpose, Recreation, Restaurant, Shopping, Transportation
Brand Name Bose
Category Type Corporate & Telework, Education, House of Worship, Retail & Hospitality, On-Wall Speakers
Color White
Depth 5"
Driver Type 2.25"
Height 38.7", 4.1"
Impedance 8 Ohm
Manufacturer Bose Corporation
Model 40188
Maximum Frequency Response 16 kHz
Maximum Operating Range 5"
Minimum Frequency Response 100 Hz
PMPO Output Power 300 W, 1200 W
Power Consumption 1200 W
Product Line Panaray
Product Type Speaker
Receiver Height 5.04"
RMS Output Power 300 W
Sensitivity 119 dB
Sound Emission 119 dB
Vendor Name Bose Professional
Weight (Approximate) 19 lb
Width 4.1"
