Bosch B4512-D-930 IP Control Panel Kit

The B4512 Control Panel integrates intrusion and residential fire, providing one simple user interface for both systems. The B4512 provides up to 28 individually identified points that can be split into 2 areas. The control panel can communicate through its built-in Ethernet port (not applicable to “E” control panels), or through compatible plug-in modules that can send events over the public switched telephone network (PSTN) or over cellular network communications.

With the B4512, you can monitor doors, windows, and motion within areas like showrooms or those that hold inventory. Each user can have a personalized passcode, a wireless keyfob, and an access credential to control the system.

Includes

• B4512 IP control panel, 28 points
• B11 Steel enclosure, small, white
• CX4010 Transformer, plug-in, 18V 22VA
• B930 ATM Style-Alpha Numeric Keypad(SD12)

Main Features

• The B930 ATM Style Alphanumeric Keypad (SD12) is a SD12 bus compatible device.
• Each keypad has user adjustable options such as volume and display brightness.
• The B930 shows five-line system messages for all areas.

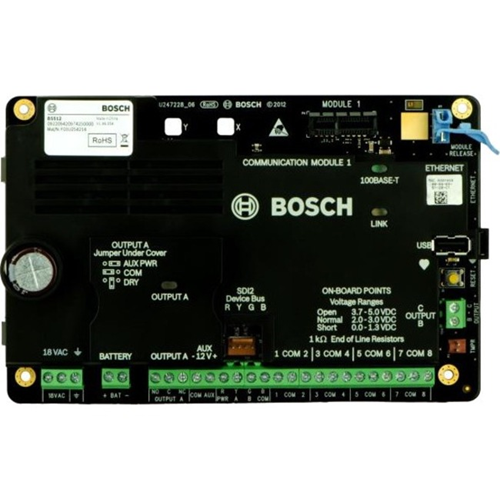

• The B4512 Control Panel integrates intrusion and residential fire, providing one simple user interface for both systems.
• The B4512 provides up to 28 individually identified points that can be split into 2 areas.

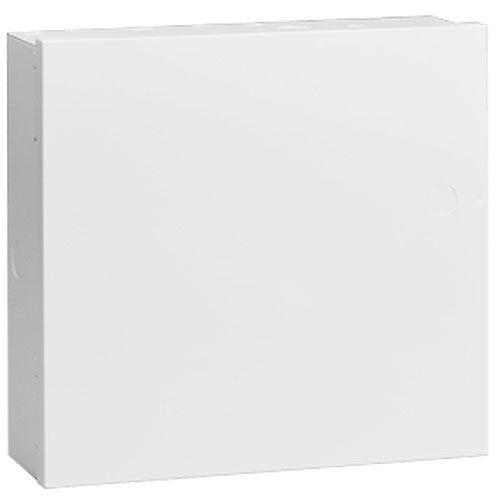

• The B11 Small Control Panel Enclosure houses many Bosch control panels and modules.
• The enclosures are compatible with an enclosure tamper switch (D110 or ICP-EZTS), lock and key set (D101), and can hold one battery (up to 7 Ah).

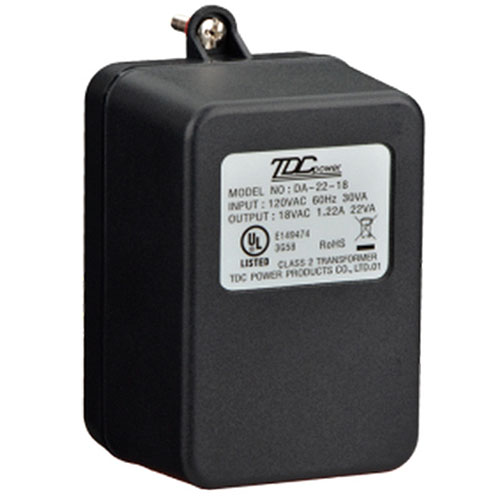

• The CX4010 is for use in North America. It converts 110 VAC primary voltage input to 18 VAC, 22 VA secondary input.
