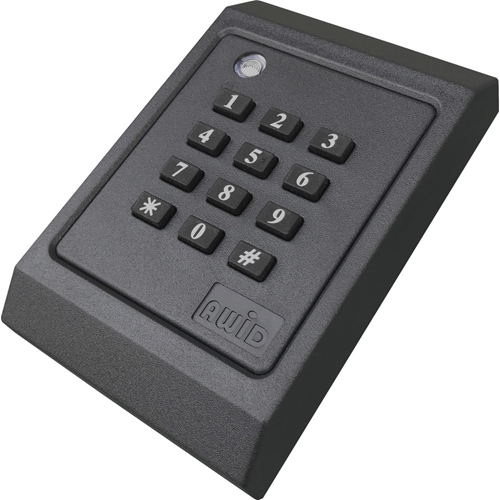

AWID KP-6840 Sentinel-Prox Proximity Reader/Keypad

AWID’s Sentinel-Prox Proximity Reader KP-6840 is a combination PIN pad and Switchplate-style reader, specially designed for high-security applications that require dual verification. With a read range of 6 to 8 inches, the KP-6840 delivers exceptional value without compromise on quality, durability, and performance for both indoor and outdoor applications.

The KP-6840 reader is a fully featured Wiegand and RS-232 compatible reader with an LED and Annunciator for both small and large volume OEM and Dealer installations. It is designed to mount on a standard-single-gang electric wall-box or on the surface of an interior or exterior wall.

Main Features

• Wiegand Proximity Reader with Keypad
• 6" to 8" (15 to 20cm) read range
• 4.6" x 3.1" x 0.88" (11.7 x 7.9 x 2.2cm) in size
• Power requirement: 5 to 12 VDC
• Supporting 4-bit burst, 8-bit burst or 26-bit keypad output
• Credentials (Cards/Tags)
• PIN pad for dual verification
• Specially designed for an attractive appearance
• Electronics potted with epoxy compound for demanding environmental applications
• LED for visual feedback, Piezo beeper for audio feedback
• Compatible with all Wiegand access control systems
• Industry standard Wiegand output and RS-232 interface
• Attractive high-tech enclosure in dark gray
• Tri-state programmable Red or Green LED in standby
