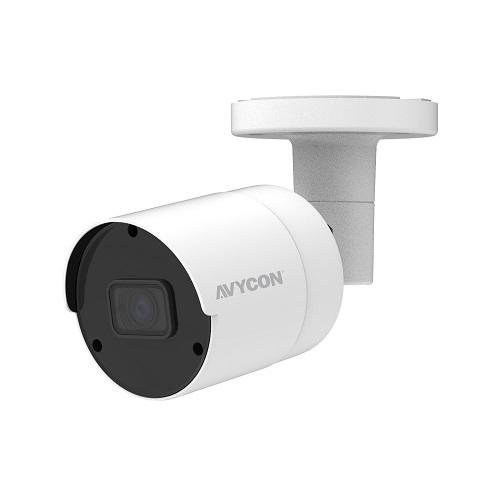

Model: AVC-TB51F28
Category: IP Bullet Cameras
Brand: Avycon
Dealer pricingOur Second Generation HD-TVI Series continues providing the quality expected from the AVYCON brand. This 1080P 5MP camera includes an upgraded Smart IR LED array, new DIP switch design for easily changing video formats (HD-TVI, CVI, AHD and Analog), and a redesigned front face to help with a more accurate night view. With the newest generation chipset and board design, we have also increased power efficiency with a possible 20% savings in consumption. Also standard with this series is Digital NR, AGC, DWDR, and BLC capabilities along with IP67 outdoor rating.
| ADI Part Number | BX-TB51F28 |
| Analog Video Signal Format | AHD, CVBS, CVI, HD-TVI |
| Application/Usage | Outdoor |
| Brand Name | AVYCON |
| Connectivity Technology | Wired |
| Device Supported | Surveillance Camera |
| Effective Camera Resolution | 5 Megapixel |
| Environmentally Friendly | Yes |
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in Infrared Illuminator, Built-in OSD Function, Day/Night, Defog, Digital Noise Reduction, Digital Wide Dynamic Range (D-WDR), Highlight Compensation (HLC), Ingress Protection, IP67 |
| Field of View | Horizontal 92.8° |
| Fixed Focal Length | 2.80 mm |
| Form Factor | Bullet |
| Image Sensor | CMOS |
| Input Voltage | 12 V DC |
| Lens Mount Type | M12-mount |
| Lens Type | Fixed |
| Limited Warranty | 36 Month |
| Longest Shutter Speed | 1/15 Second |
| Model | AVC-TB51F28 |
| Maximum Frame Rate | 30 fps |
| Maximum Operating Distance | 66 ft |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Video Resolution | 2592 x 1944 |
| Minimum Operating Temperature | -22°F (-30°C) |
| Mount Type | Corner Mount, Junction Box Mount, Pole Mount |
| Shortest Shutter Speed | 1/50000 Second |
| Video Signal Format | NTSC, PAL |
| Wireless Technology | Infrared |
