Model: AZA804
Category: Power Amplifiers
Brand: Atlas / Soundolier

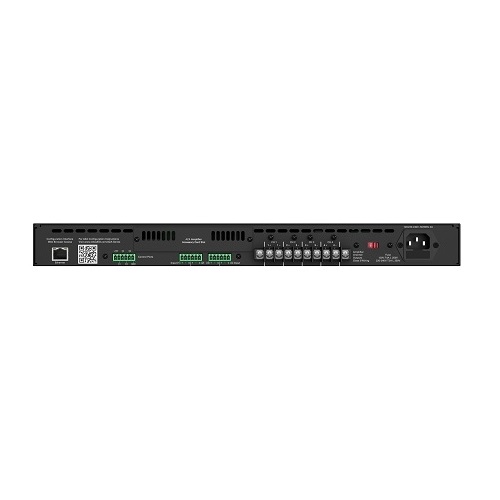

Dealer pricingThe AtlasIED Atmosphere AZA804 four-channel amplifier is designed to interface with the Atmosphere family of products, such as the AZM series of processors. The AZA amplifiers can be configured in pairs to deliver up to 100W per channel into both low and high impedance speaker loads (4?/8?/70V/100V).
The AZA804 is ready to use out of the box in four-channel, 70V mode, with no additional configuration or network connectivity required, making them easily paired for use with AtlasIED Atmosphere signal processors.
| ADI Part Number | AT-AZA804 |
| Brand Name | AtlasIED |
| Environmental Certification | RoHS, WEEE |
| Environmentally Friendly | Yes |
| Features | Digital Signal Processing |
| Height | 15.5" |
| Impedance | 8 Ohm |
| Input Voltage | 120 V AC, 230 V AC |
| Limited Warranty | 3 Year |
| Manufacturer | Atlas Sound LP. |
| Model | AZA804 |
| Maximum Frequency Response | 20 kHz |
| Minimum Frequency Response | 20 Hz |
| Packaged Quantity | 4 |
| Power Rating | 600 W |
| Product Series | AZA |
| Product Type | Amplifier |
| Rack Width | 19" |
| Total Harmonic Distortion (THD) | 1% |
| Weight (Approximate) | 13 lb |
| Width | 1.8" |
