Atlas Sound SD72 Speaker - 25 W RMS
Atlas Sound SD72 Speaker - 25 W RMS

Atlas Sound SD72 Speaker - 25 W RMS

Model: SD72

Category: In-Ceiling & In-Wall Speakers

Brand: Atlas / Soundolier

Dealer pricing

The speaker used in the SD72 is the next generation of Atlas high performance cone loudspeakers, very similar to the preceding C-Series speakers. Similarity in sonic qualities ensures that contractors and designers who have worked with the Atlas Sound C-Series in the past will know exactly what to expect when they use the SD72.

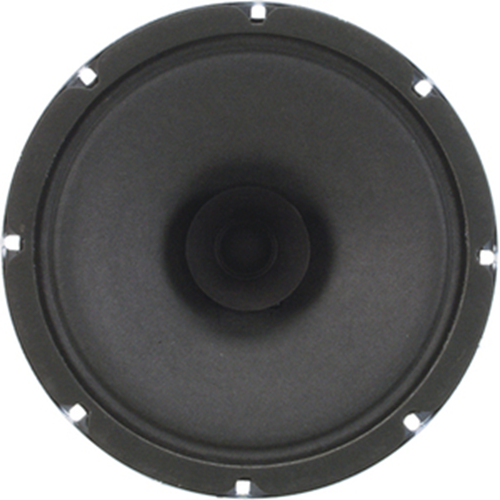

Model SD72 is a dual cone, 25 watt 8" (205mm) loudspeaker with a 10oz. (260g) ceramic magnet. It includes a curvilinear, treated paper cone for lower harmonic distortion. The loudspeaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation.

Model SD72 operates within a frequency response range of 45Hz to 19kHz (nominal) with a sensitivity of 97dB and a dispersion angle of 105°. Package includes factory installed 25/70.7V line matching transformer with tap selections ranging from .25 to 5 watts.

Features

  • 5 Watt-Dual Voltage Transformer
  • Individually Packaged for Stocking & Ordering Convenience
  • Quality 10oz Dual Cone Speaker Provides Familiar Response & Performance
  • ETL Certified, Safety Listed to UL1480.

ADI Part Number AT-SD72
Brand Name Atlas Sound
Color Black
Height 8.1"
Impedance 8 Ohm
Limited Warranty 5 Year
Lock Height 2.87"
Manufacturer Atlas Sound LP.
Model SD72
Material Anodized Aluminum, Ceramic, Copper, Paper
Maximum Frequency Response 19 kHz
Minimum Frequency Response 55 Hz
PMPO Output Power 25 W
Product Type Speaker
Sensitivity 97 dB
