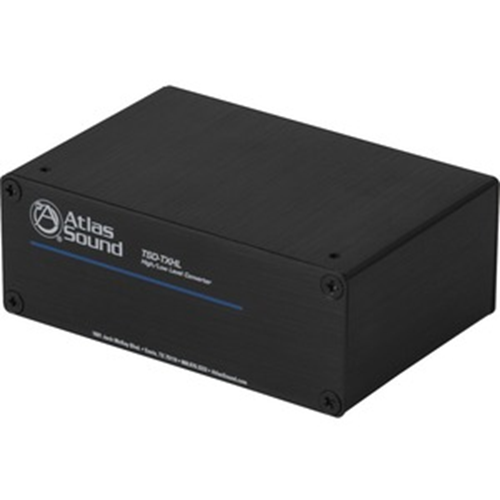

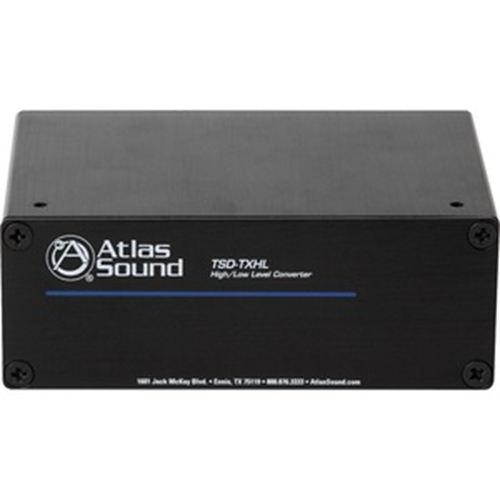

Atlas Sound High / Low Level Converter
Atlas Sound High / Low Level Converter

Atlas Sound High / Low Level Converter

Model: TSD-TXHL

Category: Amplifier & Audio Signal Processing Accessories

Brand: Atlas / Soundolier

Dealer pricing

The TSD-TXHL is a high to low level converter designed to interface with 4?/25/70/100V distributed speaker lines. An unbalanced line level output is provided to drive remote amplifiers or other devices. The TSD-TXHL allows easy expansion of zones without the need for dedicated wiring to remote locations. The high to low-level converter features an isolated transformer, which will not add measurable load to the speaker line. An output level control allows for trim adjustment to best match the remote amplifier (or other device) input sensitivity. The TSD-TXHL works perfectly in conjunction with Atlas Sound's CP and PA series amplifiers.

Features

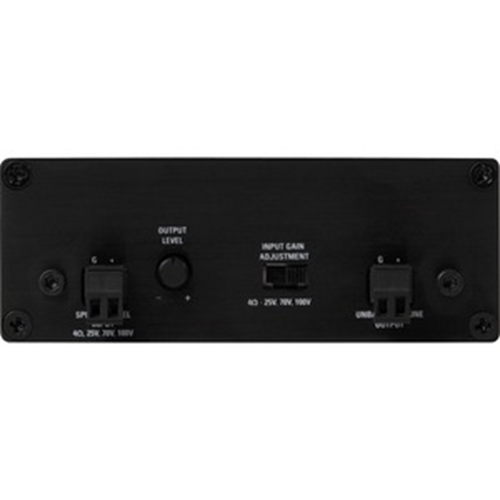

  • Tap into 4Ω/25/70/100V Speaker Lines to Interface with Remote Amplifiers
  • Input Gain Adjustment Switch
  • Trim Level Control
  • Isolated Transformer
  • Removable I/O Connectors
  • No External Power Required

ADI Part Number AT-TSDTXHL
Brand Name Atlas Sound
Color Black
Compatibility
Compatible Door Frame Type Aluminum
Depth 2.8"
Manufacturer Atlas Sound LP.
Model TSD-TXHL
Maximum Frequency Response 25 kHz
Maximum Operating Range 4"
Minimum Frequency Response 40 Hz
Product Type Signal Converter
Weight (Approximate) 5.82 oz
Width 1.5"
