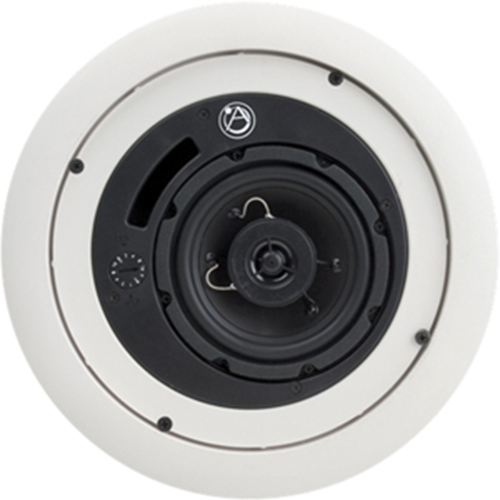

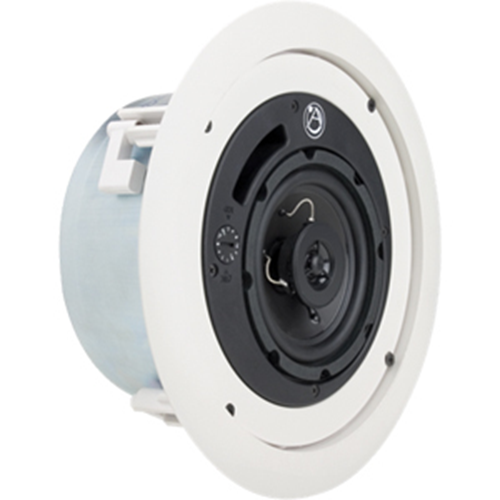

Atlas Sound FAP42TC 2-way Speaker - 25 W RMS
Atlas Sound FAP42TC 2-way Speaker - 25 W RMS

Atlas Sound FAP42TC 2-way Speaker - 25 W RMS

Model: FAP42TC

Category: In-Ceiling & In-Wall Speakers

Brand: Atlas / Soundolier

Dealer pricing

Atlas Sound's FAP42TC combines superior coaxial loudspeaker performance with wide dispersion and easy installation. A low profile enclosure and wide coverage make the FAP42TC a perfect choice for low ceilings. The FAP42TC will satisfy the needs of owners, architects, contractors, and consultants by delivering true, high fidelity sound reproduction in an attractive and easy-to-install system. The FAP42TC is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications.

Features

  • "Press Fit" Grilles Blend Better into Contemporary Architecture
  • Easy Installation in Drop Tile or Sheetrock Ceilings via C-ring/V-rail Tile Bridge and "Dog Leg" Mounting System (Included)
  • Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing increased Output for Higher SPL Applications
  • Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8 ohm Direct Coupled Operation
  • Low Depth (4") Speaker System for Limited Space Applications
  • UL 1480

Antenna Type Dome
Brand Name AtlasIED, Atlas Sound
Crossover Type 2-way
Driver Type 0.75" Dome Tweeter, 4" Woofer
Faceplate Width 0.75"
Height 10.5", 4.3"
Impedance 8 Ohm
Manufacturer Atlas Sound LP.
Model FAP42TC
Maximum Frequency Response 20 kHz
Maximum Operating Range 4"
Minimum Frequency Response 83 Hz
PMPO Output Power 25 W
Product Type Speaker
Sensitivity 88 dB
