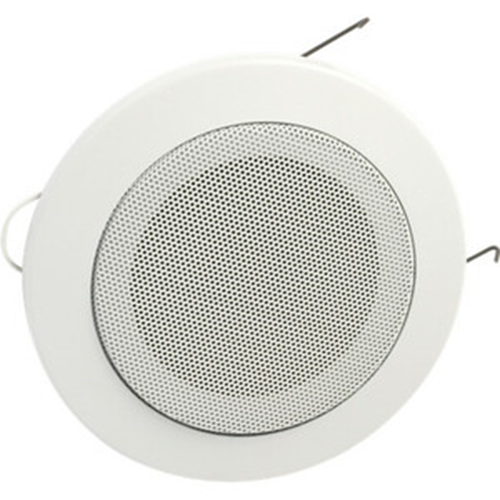

Atlas Sound BT720-4-T47 In-ceiling Speaker - 10 W RMS

Attractive B Series loudspeaker assemblies combine the sound performance of a full range 4" high compliance loudspeaker with the job site convenience and economy of a factory-assembled loudspeaker, transformer and baffle. Models incorporate the popular Atlas Sound FC104 high performance loudspeaker, recognized for full-range voice and music reproduction. Unit provides wide-angle sound dispersion to achieve desired coverage with fewer loudspeak-ers in distributed systems. Each loudspeaker employs a 10 ounce ceramic magnet and a damped, high-compliance cone to provide excellent low-frequency reproduction with smooth extended response. Package includes factory-mounted, dual-voltage 70.7/25V or 70.7V trans-former and round or square grille with screw mount or torsion spring (T) installation where noted. Two models are equipped with the patented EZ-Mount support system. EZB Models are designed for application in suspended ceiling tile installations which do not require a protective enclosure. Assemblies include pre-mounted EZ brackets which are slotted to accept EZ mount support rails (provided). Rails attach with wingnuts and adjust vertically to accommodate varying ceiling depth requirements (Note: No tile bridge is required). All B Series packages are shipped assembled and ready for installation.

Features

• Factory-Assembled Loudspeaker Packages Save Time and Money
• High Compliance 4" Loudspeaker for Full-Range Audio Reproduction in Background Music and Paging Systems
• Easy to Install Torsion Spring Grille
