Model: FA138
Category: Speaker Accessories
Brand: Atlas / Soundolier

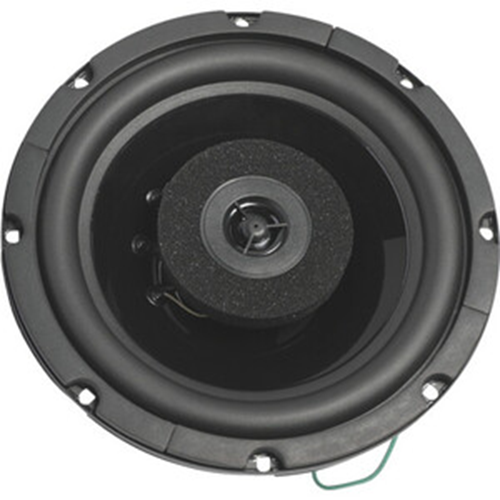

Dealer pricingModel FA138 is Atlas Sound's premium 8" coaxial loudspeaker. This 100-watt unit includes a circuit board mounted high-pass/low-pass crossover which produces outstanding sound quality.
Model FA138 contains a reinforced polypropylene cone woofer, a custom butyl rubber surround, a 1-1/2" vented Kapton voice coil, a 21 oz. magnet and a 1/2" mylar-dome ferrofluid tweeter for clean and powerful weather-resistant performance.
For optimum acoustic and application versatility the Strategy series has been engineered as a system offering both the FA97-8 Series high performance enclosures (.22ft3) with acoustic batting as well as the economy FA95-6 Series (.17ft3) backbox enclosures. The enclosure front-loads the loudspeaker and installs quickly and easily into the ceiling using only a screwdriver to adjust the rotating clamps.
Loudspeakers may also be ceiling or wall mounted into areas with minimum depth by using plaster ring Model FAPR-8 instead of an enclosure.
Baffle selection includes a choice of two attractive grilles which are equipped with three serrated studs for hardware-free, push-on installation into Strategy Series enclosures.
| Brand Name | Atlas Sound |
| Category Type | Speaker Accessories, Retail & Hospitality, House of Worship, Education, Corporate & Telework |
| Depth | 8", 3.6" |
| Diameter | 8.2" |
| Driver Type | 0.50" Mylar Dome Tweeter, 8" Reinforced Polypropylene Injected Woofer, 0.50" Mylar Dome Tweeter |
| Height | 3.6" |
| Impedance | 8 Ohm |
| Length | 8.2" |
| Limited Warranty | 5 Year |
| Manufacturer | Atlas Sound LP. |
| Model | FA138 |
| Material | Butyl Rubber, Ferrofluid, Kapton, Butyl Rubber, Kapton, Ferrofluid |
| Maximum Frequency Response | 20 kHz |
| Minimum Frequency Response | 75 Hz |
| Power Rating | 100 W |
| Product Line | Strategy |
| Product Type | Speaker |
| Receiver Depth | 3.58" |
| RMS Output Power | 100 W |
| Sensitivity | 93 dB |
| Sound Emission | 93 dB |
| Standard Gap | 0.50" |
| Tweeter Driver Material | Mylar Dome |
| Vendor Name | Atlas / Soundolier |
| Weight (Approximate) | 4.63 lb |
| Woofer Driver Material | Reinforced Polypropylene Injected |
