Model: C10A
Category: Speaker Accessories
Brand: Atlas / Soundolier

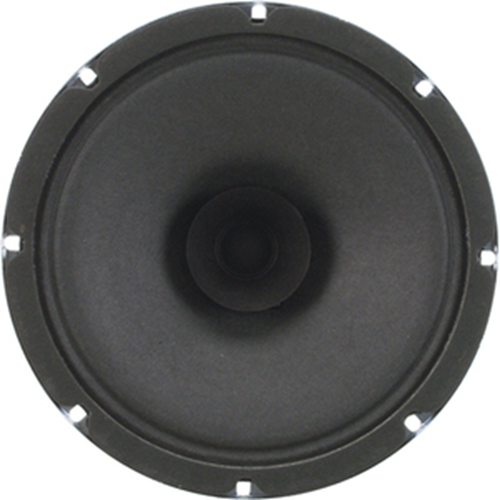

Dealer pricingModel C10A is a dual cone, 25-watt 8" (205mm) loudspeaker with a 10 oz. (260g) ceramic magnet. It includes a curvelinear, treatedpaper cone for lower harmonic distortion. The loudspeaker is also equipped with a full 1" diameter copper voice coil with a blackanodized aluminum former for better power dissipation.
Model C10A operates within a frequency response range of 45 Hz to 19 kHz with a sensitivity of 97dB and a dispersion angle of 105°.
It mounts a wide variety of Atlas Sound round and square baffles and enclosures to meet functional and aesthetic application requirements. To ensure reliability and performance integrity, 100% of all C10A loudspeakers are TEF-tested at the factory. Atlas Sound operates a well-equipped, certified research laboratory which contains a fully anechoic chamber complete with analog Bruel & Kjaer measurement equipment and the TEF 20® audio analyzer.
| Brand Name | Atlas Sound |
| Category Type | Speaker Accessories, Retail & Hospitality, House of Worship, Education, Corporate & Telework |
| Depth | 8", 2.9" |
| Diameter | 8" |
| Height | 2.9" |
| Impedance | 8 Ohm |
| Magnet Height | 2.88" |
| Manufacturer | Atlas Sound LP. |
| Model | C10A |
| Material | Aluminum, Ceramic, Copper, Paper, Aluminum, Paper, Ceramic, Copper |
| Maximum Frequency Response | 19 kHz |
| Minimum Frequency Response | 45 Hz |
| PMPO Output Power | 25 W |
| Product Series | C10A |
| Product Type | Speaker |
| RMS Output Power | 25 W |
| Sensitivity | 97 dB |
| Vendor Name | Atlas / Soundolier |
| Weight (Approximate) | 2 lb |
