Model: FA138T167
Category: In-Ceiling & In-Wall Speakers
Brand: Atlas / Soundolier

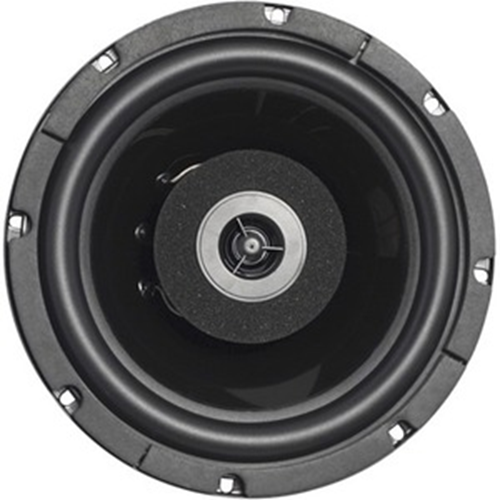

Dealer pricingModel FA138T167 is Atlas Sound's premium 8" coaxial loudspeaker with a factory installed, high efficiency 16 Watt 70.7V transformer.
The loudspeaker includes a circuit board mounted high-pass/low-pass crossover which produces outstanding sound quality. Model FA138 contains a reinforced polypropylene cone woofer, a custom butyl rubber surround, a 1 1/2" vented Kapton voice coil, a 21 oz. magnet and a 1/2" mylar-dome ferrofluid cooled tweeter for clean and powerful weather-resistant performance.
The integral 16 Watt 70.7V transformer features a 40Hz to 15kHz frequency responce (+/- 1 dB) with 4, 8 and 16 watt primary taps.
For optimum acoustic and application versatility the Strategy series has been engineered as a system offering both the FA97-8 Series high performance enclosures (.22ft3) with acoustic batting as well as the economy FA95-6 Series (.17ft3) backbox enclosures. The enclosure front-loads the loudspeaker and installs quickly and easily into the ceiling using only a screwdriver to adjust the rotating clamps. Loudspeakers may also be ceiling or wall mounted into areas with minimum depth by using plaster ring Model FAPR-8 instead of an enclosure.
| Brand Name | Atlas Sound |
| Category Type | Corporate & Telework, Education, House of Worship, Retail & Hospitality, In-Ceiling & In-Wall Speakers |
| Certifications & Standards | UL 1480 |
| Depth | 5.7" |
| Diameter | 8.2" |
| Driver Type | 8" Polypropylene Woofer, 0.50" Mylar Dome Tweeter |
| Impedance | 8 Ohm |
| Limited Warranty | 5 Year |
| Model | FA138T167 |
| Material | Kevlar, Ferrofluid, Fiber, Kapton, Butyl Rubber |
| Maximum Frequency Response | 20 kHz |
| Minimum Frequency Response | 40 Hz |
| Product Line | Strategy |
| Product Series | FA138 |
| Product Type | Speaker |
| RMS Output Power | 100 W |
| Sensitivity | 93 dB |
| Vendor Name | Atlas / Soundolier |
| Weight (Approximate) | 4.63 lb |
