Model: UHT25C-U51-8
Category: In-Ceiling & In-Wall Speakers
Brand: Atlas / Soundolier

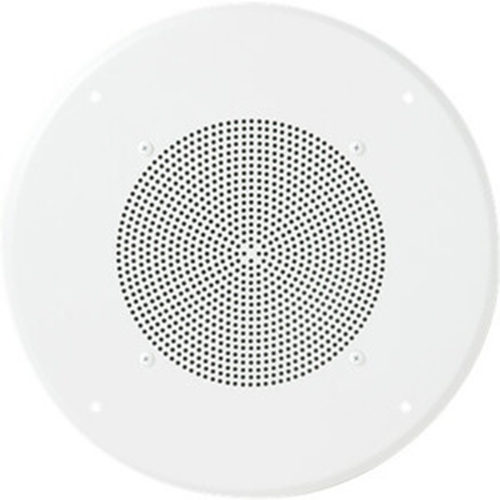

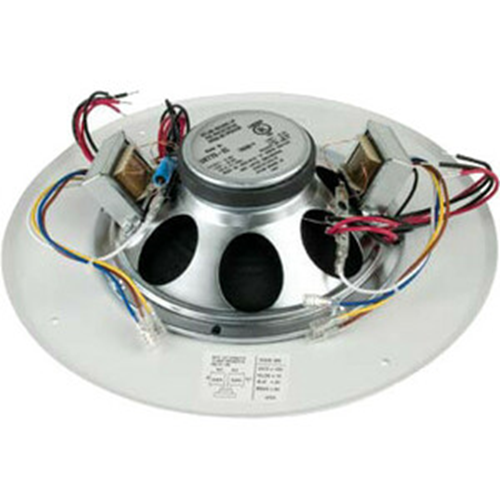

Dealer pricingAtlas Sound's UHT25C-U51-8 are 8" diameter single voice coil loudspeakers equipped with dual (whizzer) cone and 10 oz. ceramic magnet to deliver extended frequency response with high intelligibility and minimal distortion. Cost-effective units are complete with fire-retardant moisture-proof cones, factory-mounted transformer, 6" color-coded leads, and a 51-8 baffle. UHT Series loudspeakers have a 1" dia. voice coil, a 25-volt transformer, and DC blocking capacitor for line supervision applications. To comply with UL requirements, loudspeaker packages must be used with UL-approved enclosures.
Brand Name | Atlas Sound |
Category Type | Corporate & Telework, Education, House of Worship, Retail & Hospitality, In-Ceiling & In-Wall Speakers |
Certifications & Standards | UL 1480 |
Color | White |
Depth | 8", 2.9" |
Diameter | 8" |
Height | 2.9" |
Impedance | 8 Ohm |
Manufacturer | Atlas Sound LP. |
Model | UHT25CU518 |
Material | Ceramic |
Maximum Frequency Response | 8 kHz |
Minimum Frequency Response | 85 Hz |
Power Consumption | 10 W |
Product Series | UHT |
Product Type | Speaker |
RMS Output Power | 10 W |
Sensitivity | 97 dB |
Vendor Name | Atlas / Soundolier |
