Model: C803AT87
Category: In-Ceiling & In-Wall Speakers
Brand: Atlas / Soundolier

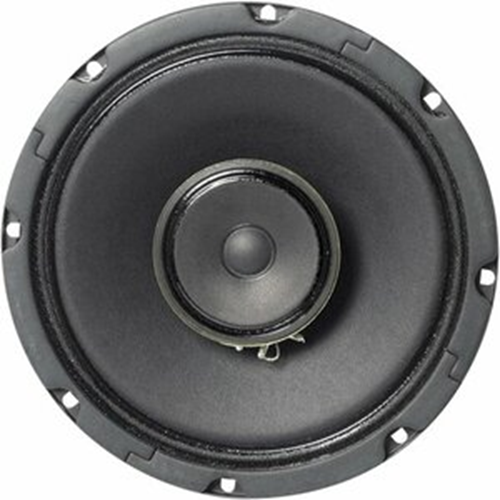

Dealer pricingModel C803AT87, A high-quality 16-watt loud speaker with a factory-installed 70.7V 8W linematching transformer
Model C803AT87 utilizes a postmounted tweeter which adds strength to the assembly and provides an attractive appearance. This coaxial loudspeaker features a 70 Hz- 15.5 kHz, ±5dB frequency response and a broad, uniform dispersion pattern of 120°. Such provisions allow for highly intelligible sound reproduction and better distribution for high-quality sound systems.
The C803A combines a full-size 8" (203mm) dia. low-frequency reproducer and a 3" (76mm) high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10 oz. (260g) ceramic magnet; the tweeter has a 2.35 oz. (67g) ceramic magnet and the unit has a peak sensitivity of 98dB (at 1 watt, 1 meter).
Model C803A mounts a wide variety of Atlas Sound baffles and enclosures, with the optimum sealed enclosure size being .36 cu. ft.
| Brand Name | Atlas Sound |
| Category Type | Corporate & Telework, Education, House of Worship, Retail & Hospitality, In-Ceiling & In-Wall Speakers |
| Crossover Frequency | 2.80 kHz |
| Depth | 2.9" |
| Diameter | 8" |
| Driver Type | 3" Ceramic Tweeter, 8" Ceramic Woofer |
| Impedance | 8 Ohm |
| Model | C803AT87 |
| Material | Aluminum, Paper, Copper |
| Maximum Frequency Response | 15.50 kHz |
| Minimum Frequency Response | 50 Hz |
| Product Series | C803A |
| Product Type | Speaker |
| RMS Output Power | 16 W |
| Sensitivity | 98 dB |
| Vendor Name | Atlas / Soundolier |
| Weight (Approximate) | 2.40 lb |
