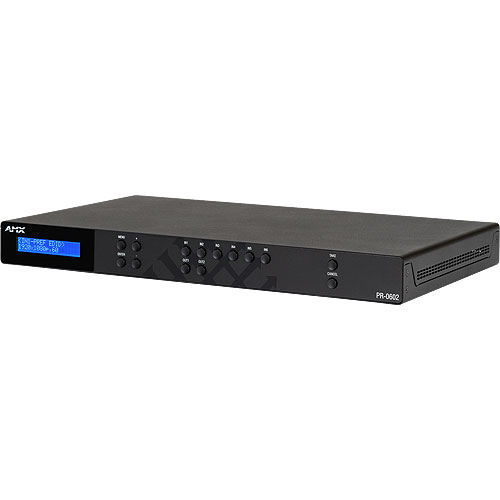

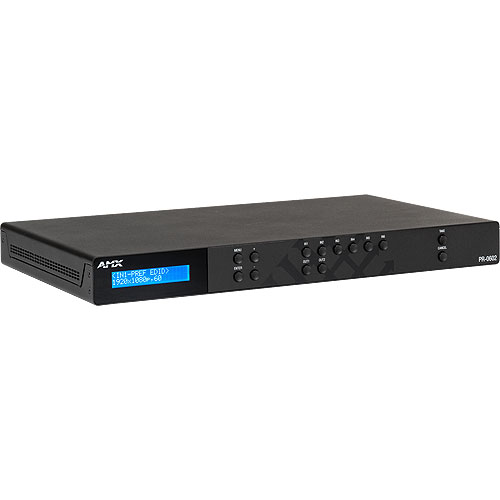

Precis 6x2 4k60 HDMI Switcher

The AMX Precis 6x2 4K60 HDMI Matrix Switcher is an extremely affordable yet fully featured HDMI video routing solution for medium to larger installations. Featuring 6 HDMI inputs and 2 HDMI outputs, it includes best-in-class capabilities like pixel-for-pixel video reproduction, comprehensive EDID management, manual switching modes, and extreme control flexibility with an open control API and a simple-to-manage HTML5 web interface.

The PR-0602 supports high quality HDMI 2.0, HDCP 2.2, HDR10+, 36-bit per pixel Deep Color, and Dolby Vision. Dynamic audio de-embedding and multiple open control options offer maximum configuration flexibility. Combining a robust matrix switcher and a highly affordable price point, backed by over 30 years of industry-leading matrix switching experience, the AMX Precis PR-0602 can be trusted to deliver an exceptional switching solution.

Main Features

• Perfect HDMI 2.0 4K60 4:4:4 Video -Ideal for users that can benefit from processing the full fidelity of their displays
• High Dynamic Range (HDR) and Deep Color Support –Support for HDR10+, 36-bit per pixel Deep Color, and Dolby Vision
• HDCP 2.2 -Supports the latest video standards to realize the full capabilities of HDMI interfaces
• EDID Management -Provides comprehensive management of EDID to ensure that every source is displayed at the optimal resolution and format
• Audio De-Embedding –Includes the convenience of analog audio de-embedding from each HDMI output separately
• H-Control Upgradable –Ready to support H-control in the future by firmware re-writing via USB
• Multiple Control Options –Multiple control options are available including: Open API Control over IP and Serial, full Web GUI console, and front panel buttons
