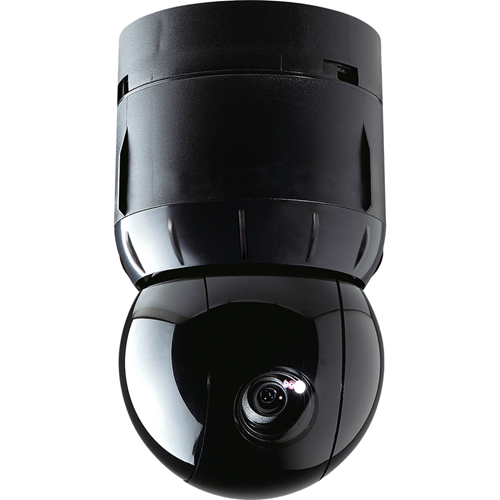

American Dynamics SpeedDome ADSDU8E22N Surveillance Camera - Dome
American Dynamics SpeedDome ADSDU8E22N Surveillance Camera - Dome

American Dynamics SpeedDome ADSDU8E22N Surveillance Camera - Dome

Model: ADSDU8E22N

Category: Analog Cameras, Analog Indoor PTZ Cameras

Brand: American Dynamics

Dealer pricing

The SpeedDome Ultra 8E 22x series delivers excellent color images in scenes as dim as .02 lux. Zoom ability consists of 22x optical and 11x digital zoom for 242x total zoom. Like the 35x series, the 22x offers advanced programmable features including DSS, automatic home position, dome usage statistics, increased number of privacy zones, advanced on-screen text, and freeze frame on presets to conserve digital recorder hard drive space. Helpful onscreen text and indicators show the direction the dome is currently pointing, as well as the direction in which it is moving.

Main Features

  • Motion detection provides the ability to trigger multiple user-specified actions with motion tracking capabilities
  • Improved privacy zones and patterns
  • Supports additional number of third party protocols
  • Continuous autofocus provides the clearest images during full range of motion
  • Advanced on-screen display with titles provides the detail you need
  • Supports SensorNet, RS-422, AD-UTC, Manchester and select manufacturers’ Protocols
  • Supports NTCIP protocol, designed specifically for the transportation market

Analog Video Out Yes
Antenna Type Dome
Aperture Range f/1.6
Brand Name American Dynamics
Bypass Switch Automatic
Category Type Analog Indoor PTZ Cameras
Color Black
Color Supported Color
Compatibility

NTSC
Connectivity Technology Wired
Device Supported Surveillance Camera
Diameter 4.7"
Digital Zoom 12x
Environmental Certification RoHS
Environmentally Friendly Yes
Features Motion Detection
Field of View 1.05° to 47.3°, 110°, 1.05? to 47.3?
Fixed Focal Length 4 mm
Focus Modes Automatic
Form Factor Dome
Height 8.1", 4.7"
Illumination Minimum 0.02 Lux
Image Sensor Size 1/4"
Image Sensor Type CCD
Label Width 1/4"
Lens Included Yes
Lens Type Zoom
Longest Shutter Speed 1/1.5 Second
Manufacturer Tyco International, Ltd
Model ADSDU8E22N
Maximum Aperture f/1.6
Maximum Focal Length 88 mm
Maximum Viewing Angle 360°
Minimum Focal Length 4 mm
Optical Zoom 22x
Product Line SpeedDome
Product Series 22x
Product Type Surveillance Camera
Security Features

Password Protection
Serial Yes
Shortest Shutter Speed 1/30000 Second
Status Indicators

OSD
Swivel 360°
Tilt 110°
Vendor Name American Dynamics
Viewing Angle 1.05° to 47.3°
Weight (Approximate) 2.40 lb
White Balance Modes Auto
Wide Angle Yes
