AKG 4/1 Antenna Power Splitter

Model: 3296Z00030

Category: Microphone Accessories & Stands

Brand: Akg

Dealer pricing

SPLIT IT UP
The APS4 is a wide-band UHF active Antenna and Power Splitter that can feed up to 4 receivers with the RF signal coming from one pair of antennas and also supplies power to all connected receivers via BNC cables. The splitter operates in an extended frequency range of 470 to 952 MHz. Adjustable RF-level attenuation settings guarantee maximum operating distance even when using different cable lengths and different types of cables. The APS4 comes in a rugged half-rack metal housing and works with all active and passive AKG antennas available on the market (RA4000 B/W, RA4000 W, SRA2 B/W and SRA2 W). The product is shipped with a rack mount kit (RMU4000), two front mount antenna cables and ten BNC cables (MKPS) for an immediate system setup. The APS4 sets are available in four different power supply variants: EU, US, U.K. or none included.

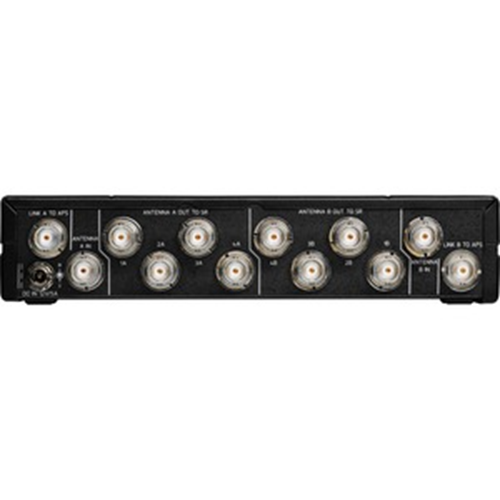

Two rear panel antenna inputs provide a 12 VDC supply voltage for powering up to three active elements per antenna path. E.g. one active antenna (RA4000 B/W or SRA2 B/W) and two AB4000 antenna boosters connected to one RF input. Also located on the rear panel are two sets of four BNC antenna output connectors for feeding up to four diversity receivers and two additional antenna outputs for cascading up to three further APS4 devices.

Brand Name AKG
Category Type House of Worship, Retail & Hospitality, Microphone Accessories & Stands
Depth 7.5"
Height 1.7"
Input Voltage 12 V DC
Model 3296Z00030
Maximum Frequency 952 MHz
Minimum Frequency 470 MHz
Product Type Signal Splitter
Vendor Name Akg
Weight (Approximate) 2.20 lb
Width 7.8"
