Model: JPS-4AEDV

Category: Door Entry, Analog Intercom Kits

Brand: Aiphone

Dealer pricing

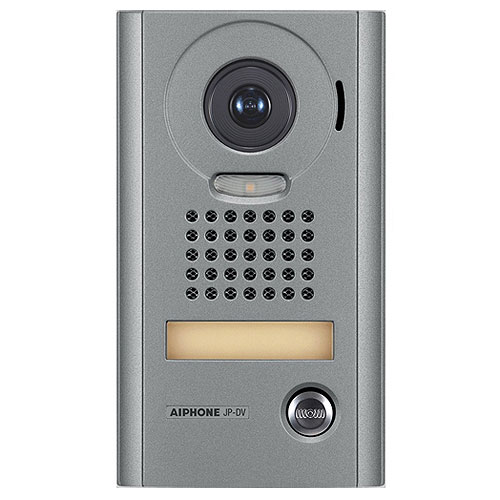

The JP-DV is an aluminum die cast surface mount color video door station. Works with the JP Series and connect to the master station using an 18AWG 2-conductor solid core cable. Includes a camera, microphone, speaker, and call button. Tamper resistant screws are provided for mounting.

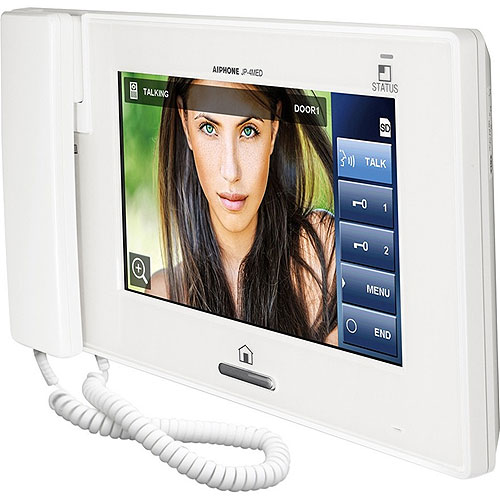

The JP-4MED is a video master station with a 7” color touchscreen LCD. The JP-4MED offers handset (duplex) and hands-free (VOX) communication. This unit will support up to 4 door stations and 8 inside stations. All inside stations are equipped with a door release button for the user to allow visitor entry.

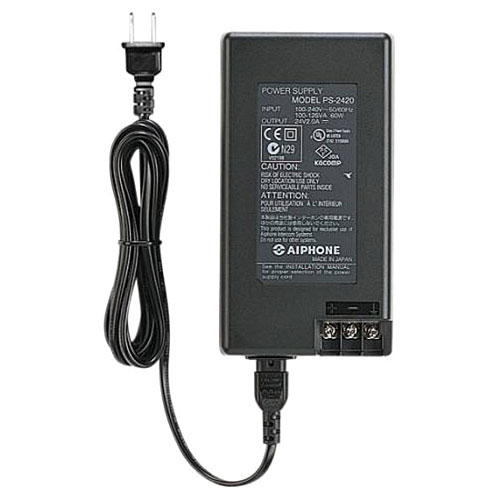

The PS-2420UL is a DC 24V Class II power supply used for Aiphone intercom applications. This power power supply is UL and CSA listed and is designed for indoor use only.

Main Features
  • Box set includes JP-DV Video Door Station, Surface Mount Zinc Die Cast Cover, JP-4MED Video Master Station with a 7” color touchscreen LCD,and PS-2420ULDC 24V Class II Power Supply
  • 1/4" CMOS Camera
  • Viewing Angle: Wide (approx. 100° x 170°) with Digital Pan, Tilt, and Zoom
  • Door Station to Master Station Wire Type: 2 cond., mid cap, solid, non shielded - use Aiphone #871802
  • Power Supply to Master Station Wire Type: 2 cond., mid cap, solid, non shielded - use Aiphone #871802
  • Door Station to Master Station: 165' (22AWG) 330' (18AWG)
  • Power Supply to Master Station: 16'(22AWG) 33'(18AWG)
  • Weather resistant

Brand Name Aiphone
Category Type Analog Intercom Kits
Communication Mode Full-duplex
Display Screen Type LCD
Horizontal Viewing Angle 170°, 170°
Image Sensor CMOS
Image Sensor Type CMOS
Input Voltage 24 V DC
Manufacturer Aiphone Co., Ltd
Model JPS-4AEDV
Maximum Wiring Distance 330 ft
More Ways To Save Sale Center
Product Series JP
Product Type Video Door Phone
Screen Size 7"
Vendor Name Aiphone
Vertical Viewing Angle 100°, 100°
Width 7"
Wiring Type 2-wire
