Model: C-123L/A

Category: Door Entry, Analog Intercom Kits

Brand: Aiphone

Dealer pricing

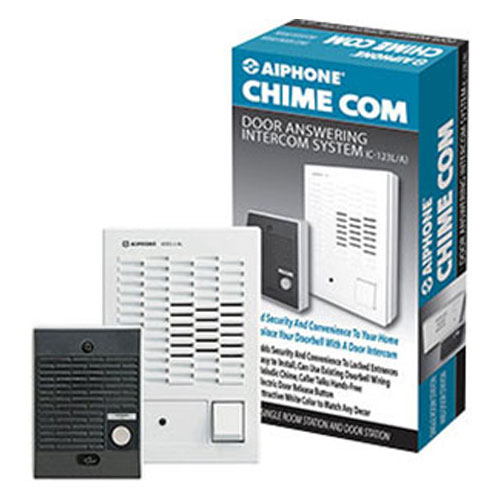

C-123L/A: Single master set includes a door station (C-D) and a master stations (C-ML/A). Additional masters may be added. Each master requires a separate power supply, either the SKK-620 or 4 "C" batteries. The door station calls the master(s) by pressing a call button that initiates a chime. Communication is Push to talk/release to listen at the master and hands free at the door station. Communication times out after being idle for twenty seconds.

Main Features

  • Box set includes C-ML/A and C-D
  • Chime from door station answered from inside station
  • Door release

Specs

  • Power Consumption: 85mA (6V DC) max.
  • Output: 100mW
  • Type of communication: Push-to-talk (simplex)
  • Door Release Contact: N/O dry contact, 30V AC/DC 1A
  • Mounting: Wall mount
  • Wire Type: 2-cond., overall shield - use Aiphone #822202(22AWG) or #821802(18AWG)
  • Wire Distance: Door Station to farthest Master Station: 245'(22AWG), 590'(18AWG)

Brand Name Aiphone
Category Type Analog Intercom Kits
Limited Warranty 1 Year
Manufacturer Aiphone Co., Ltd
Model C-123L/A
Product Type Intercom Master Station
Vendor Name Aiphone
